Product Details:
Payment & Shipping Terms:
|
| Product Name: | JM125SH High Pressure Air Compressor (German Version) | Model: | JM125SH |
|---|---|---|---|
| RPm R/min: | 2300 | Displacement L/min: | 125 |
| Drive: | 5.5PS HONDA Gasoline Engine | Power KW: | 5.5HP |
| Tank Capacity: | 0.4L | Working Pressure: | 20-30Mpa |
| Working Medium: | Air | Oil / Water Separation: | Final Stage Oil Water Separator |
| Lubricating Oil Model: | BS750（food Grade Special Oil） | Compressor Stages: | Three Stage Compression |
| Noise DB: | ≤78 | Net Weight Kg: | 50 |
| Size mm: | 750×400×460 | Remark: | Optional Or Customized |
| Air Quality: | It Is In Accordance With GB 18435-2007 "diving Breathing Gas Standard" And European EN12021 "international Breathing Compressed Air Standard" | ||
| High Light: | 30Mpa High Pressure Air Compressor,5.5HP High Pressure Air Compressor,2300r/Min Firefighter Air Compressor |
||
JM125SH High Pressure Air Compressor (German Version)
JM125SH High Pressure Air Compressor(German Version) Describe
JM125SH High Pressure Air Compressor (German Version) is a safe and reliable product driven by Honda gasoline engine without power supply. The compressed air meets the EU EN12021 standard. It is mainly used in emergency rescue, fire fighting, diving, petrochemical, precision instruments and meters, air tightness test, laboratory and other fields to provide clean, safe and reliable gas source. It is composed of reliable and long service life components, with compact structure, simple maintenance, easy to use and pure outlet gas.
The high-pressure air compressor is a kind of machine for increasing gas pressure or conveying gas. It can directly compress the free air to the compressed air with gauge pressure of 22 / 33mpa. After passing through the separator, filter and cooling in the unit, the oil and impurities contained in the high-pressure air are removed, and the clean and odorless gas pressure is discharged It is a reliable high-pressure gas supply device when it is retracted into a high-pressure gas cylinder or container.
Main engine of high pressure compressor
Splash lubrication
Lubricating oil: food grade special oil (Bauer bs750)
Oil pool capacity: 0.4L intake filter
There is a cooler after each stage of compression
The temperature of the compressed gas after passing through the cooler is about 10-15 ° C higher than the ambient temperature
After each stage of compression, there are intermediate water oil separator (except the first stage), and the final stage water oil separator
Each stage of compression is equipped with safety valve and final safety valve
A pressure maintaining valve is set in front of the outlet of the high-pressure compressor, which automatically opens at 8-10mpa to ensure the enhanced filtration of compressed air. The high-pressure compressor has been filled with lubricating oil and has passed the operation test of the whole machine
The final filtration system adopts triple filtration system composed of activated carbon, molecular sieve and carbon monoxide adsorbent to ensure that the filtered compressed air meets EN12021 respiratory air (EU standard).
Factory accessories
| Number | Name | Qty | Number | Name | Qty |
| 01 | Multi Function High Pressure Inflation Valve And Inflation Hose | 1 | 05 | Sealing Ring | 3 |
| 02 | Intake Filter Element | 1 | 06 | O-ring | 4 |
| 03 | Last Stage Air Filter Element | 1 | 07 | Open Filter Barrel Tool | 1 |
| 04 | Food Grade Special Oil | 1L | 08 | Packing List | 1 |
Warranty period
Warranty period of one year, lifelong service
Structure and style of high pressure compressor
The high pressure compressor is installed on a stable underframe
Transmission mode: gasoline engine transmission
Safety and control
Final stage pressure 33mpa
Manual blowdown (once every 20 minutes)

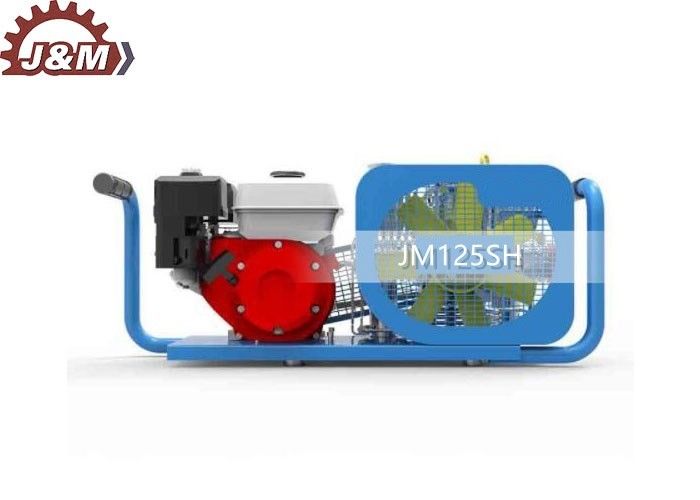

JM125SH High Pressure Air Compressor(German Version) Real picture
JM125SH High Pressure Air Compressor(German Version) Parameter
| Name | JM125SH High Pressure Air Compressor (German Version) |
| Model | JM125SH |
| Drive | 5.5PS HONDA gasoline engine |
| RPm r/min | 2300 |
| Power KW | 5.5HP |
| Displacement L/min | 125 |
| Working medium | Air |
| Working pressure Mpa | 20-30 |
| Tank capacity L | 0.4 |
| Compressor stages | Three stage compression |
| Oil / water separation | Final stage oil water separator |
| Lubricating oil model | BS750(food grade special oil) |
| Noise dB | ≤78 |
| Size mm | 750×400×460 |
| Net weight Kg | 50 |
| Final filter group | Purification and filtration of activated carbon, molecular sieve and alumina |
| Air quality | It is in accordance with GB 18435-2007 "diving breathing gas standard" and European EN12021 "international breathing compressed air standard" |
| Remark | Optional or customized |

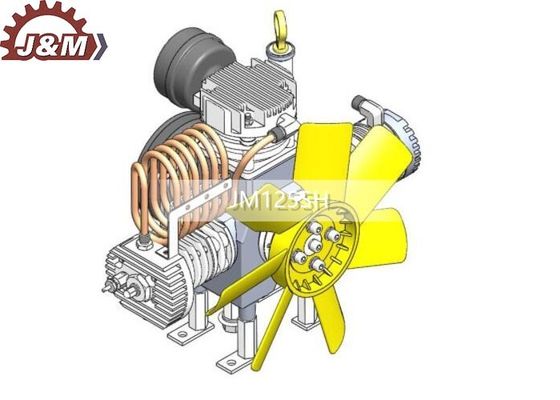

JM125SH High Pressure Air Compressor(German Version) Structure
