Product Details:
Payment & Shipping Terms:
|
| Product Name: | Safety Fire Hose Reel With Sprinkler Nozzle | Brand Name: | J&M |
|---|---|---|---|
| Hose Reel Length: | 10-30m And Customized | Color: | Red |
| Material: | PVC | Type: | Fixed/Swivelling/Automatic/Manual |
| Packing: | Standard Package | ||
| High Light: | 30m Firefighter Water Hose,10m Firefighter Water Hose,30m Safety Fire Hose Reel |
||
Safety Fire Hose Reel 30m Firefighter Water Hose With Sprinkler Nozzle
Description of Safety Fire Hose Reel With Sprinkler nozzle
Fire hose reels are located at strategic places in buildings to provide a reasonably accessible and controlled supply of water for fire extinguishing.
Fire hose reel systems consist of pumps, pipes, water supply and hose reels located strategically in a building, ensuring proper coverage of water to combat a fire.
The Parameter of Safety Fire Hose Reel With Sprinkler nozzle
|
High quality cold rolled mild steel | |
| 2. Length : | As customer requirements | |
| 3. Size: | 1' or 3/4" | |
| 4. Type: | Swing manual or swing automatic or fixed manual | |
| 5. Working pressure : | 8 bar-20bar | |
| 6. Bursting Press : | 24 bar-60 bar | |
| 7. Working temperature: | -10°c+50°c | |
| 8. Jetting Ranger: | ≥6 M | |
| 9. Flow | ≥24 L / min |
Application and Characteristic of Safety Fire Hose Reel With Sprinkler nozzle
application: market, hotel, warehouse and residential places
characteristic:PVC antiflaming fire hose reel is with good performance ,such as antiflaming,aging resistance,ersion resistance,etc.
Also it is of lige weigt,bright color,high brust pressure,good roll and extension nature and so forth.

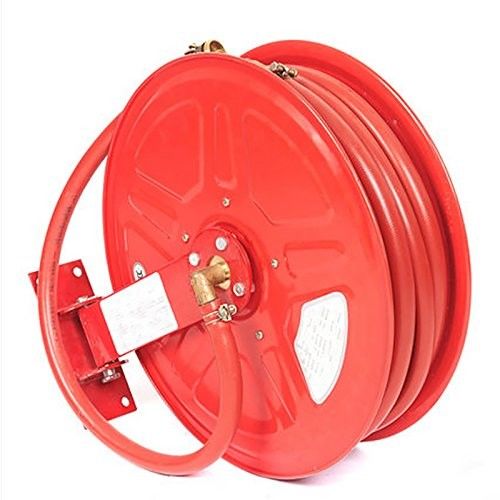

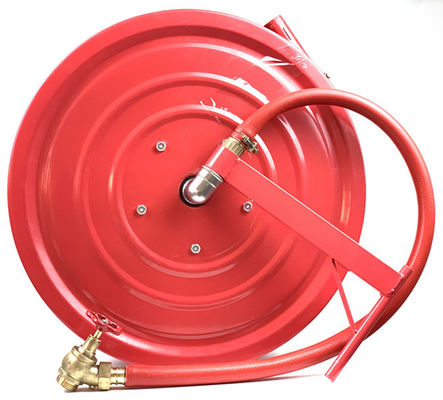

Picturres of Safety Fire Hose Reel With Sprinkler nozzle
How To Roll Hose On Reel?
(1) Lay the hose straight and flat on the ground.
(2) Fold the hose in half laying flat on the ground so that the couplings are together one above the
other. One half is now laying flat on top of the other half.
(3) Roll the hose on the reel, beginning at the folded end that does not contain the couplings. You
should end with a nozzle and a female coupling.
(4) Attach female coupling to water source so hose is ready for immediate use. Hose must be
unrolled before water valve is opened.
Company Information
J & M Machine Tools Co. Ltd is specialized in supplying Chinese high quality industrial metal-working machines, which includes Grinding machines, ,RV parts,Turning, police car parts, Drilling, Fire truck parts, Milling, ambulance parts, metal-forming machines etc.. (both conventional and CNC type). Our Machines are with high quality in China with European standard which had been exported to worldwide markets for its reliable quality and favorable price.
1. Different definitions: the full name of fire hose reel is "fire hose reel", which is composed of valve, input pipeline, hose, spray gun, etc., and can spray fire extinguishing agent in the process of rapidly expanding the hose. Fire hose is a hose for transporting high pressure water or foam and other flame-retardant liquids.
2. Different uses: when the fire reel is on fire, the fire brigade uses it to connect the water pipe to extinguish the fire. Fire hose is a hose for transporting high pressure water or foam and other flame-retardant liquids. The former is used to connect water pipes, and the latter is used to transport flame retardant liquid, not limited to water.
3. The storage location is different: the fire reel is generally in a red fire cabinet, which is usually installed on the wall around some convenient and fire prone areas. There are generally fire extinguishers and fire alarms around. The fire hose shall be stored in a special place or room. For long-term storage, the standby water hose shall be stored in a place suitable for temperature and ventilation. The water hose shall be rolled up in a single layer, and turned twice a year or folded once. The water belts on the car shall not rub with each other, and the folded edges shall be exchanged if necessary.
