Product Details:
Payment & Shipping Terms:
|
| Tank Capacity: | < 3000L | Engine Model: | ISUZU QL1100A8MA1Y |
|---|---|---|---|
| Tire: | 8.25-20, 8.25R20 | Rated Power: | 10.0KVA |
| High Light: | emergency rescue vehicle,fire hose quick coupling |
||

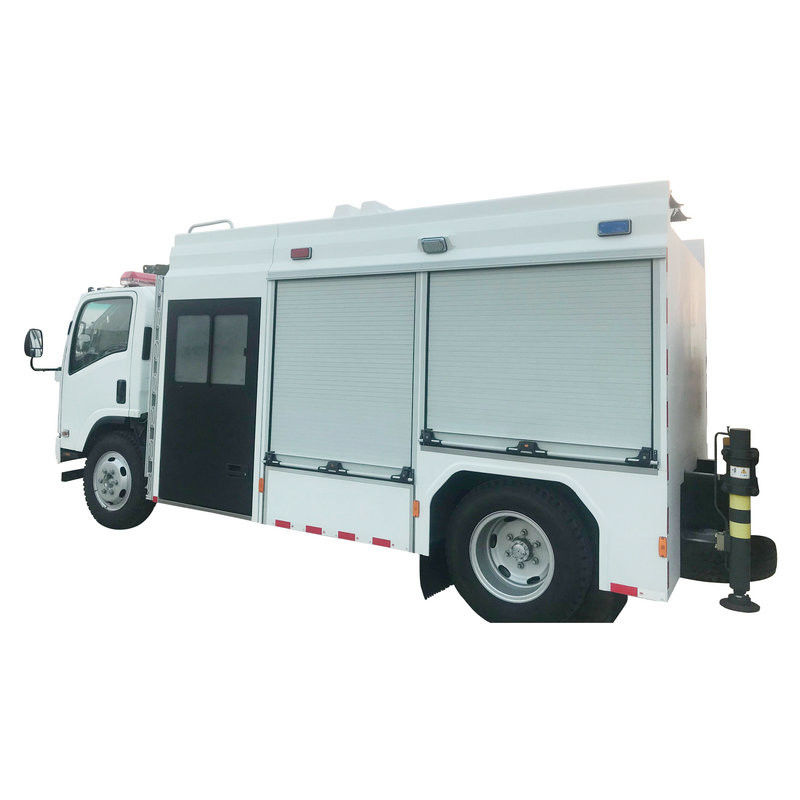

Lifting Light Fire Truck Parts Emergency Rescue Vehicle Tank Capacity < 3000L
product description；
| Name | Technical parameters and requirements |
| Dimension | 7860×2300×3300mm |
| Total weight | 10000kg |
| Max. net power | 142kW |
| Max. travel speed | 100km/h |
| Emission standard | Euro 4 |
| No of crew | 6 |
| Power density | 142/10=14.2 |
| Approach angle | ≥16° |
| Departure angle | ≥13° |
| Max. pull of winch | 4200kg |
| Max Lifting load | 3000kg |
| Engine rated power | 10KVA |
| Pneumatic lifting LED light | Max lifting height :7.5m,power:4×1000W |
Chassis
1. Main parameters of chassis
| Engine model | ISUZU QL1100A8MA1Y |
| Brand | Qingling Automobile Co., Ltd. |
| Emission Standard | V |
| Wheel base | 4475mm |
| Tire | 8.25-20, 8.25R20 |
3. crane
| Model | SQ3.2ZK2 |
| Max. lifting load | 3000kg |
4. winch
| Model | 9500LBS(24V) |
| Rated pulling force | 4200kgf |
| Length of wire | Φ9.7mm*38m |
| Working voltage | 24V |
5. lifting light
| Model | SG75-41000G |
| Power | 4000w |
| Max height of lifting | 7.5m |
| Horizontal rotation angle | 380° |
| Vertical rotation angle | 330° |
| Distribution Cabinet | One 380V input interface, one 380V output interface, and two 220V output interfaces can be used to power lighting and other equipment through a generator or through municipal electricity. There is overload protection system and monitoring instrument, each operation button is marked with obvious operation logo. |
6. electric generator
| Model | SHT11500 |
| Brand | Sato Electric Co., Ltd. |
| Rated power | 10.0KVA |
| Stand-by power | 11.5KVA |
| Voltage | 220V/380V |
| Start-up mode | Electrical starting |
| Equipped | One mobile coil 220V; one mobile coil 380V; grounding system |
