Product Name: | JM100SH Italian High Pressure Air Filling Pump Air Inflating Machine 30MPa | Model: | JM100SH |
---|---|---|---|
Working Medium: | Air | Drive: | GX160 Gasoline Engine |
RPm R/min: | 2800 | Power KW: | 5.5HP |
Displacement L/min: | 100 | Working Pressure Mpa: | 20-30 |
Tank Capacity L: | 0.35 | Compressor Stages: | Four Stage Compression |
Oil / Water Separation: | Final Stage Oil Water Separator | Lubricating Oil Model: | BS750(food Grade Special Oil) |
Noise DB: | ≤85 | Size mm: | 680×370×400 |
Net Weight Kg: | 40 | Final Filter Group: | Purification And Filtration Of Activated Carbon, Molecular Sieve And Alumina |
Air Quality: | It Is In Accordance With GB 18435-2007 "diving Breathing Gas Standard" And European EN12021 "international Breathing Compressed Air Standard" | Remark: | Optional Or Customized |
High Light: | 30MPa Air Filling Pump,2800r/Min Air Filling Pump,5.5HP Air Inflating Machine |
JM100SH Italian High Pressure Air Filling Pump Air Inflating Machine 30MPa
JM100SH Italian High Pressure Air Filling Pump Air Inflating Machine 30MPa Describe
Main engine of filling pump
Splash lubrication
Lubricating oil: food grade special oil (American ruifubao bs750)
Oil pool capacity: 0.35L intake filter
There is a cooler after each stage of compression
The temperature of the compressed gas after passing through the cooler is about 10-15 ° C higher than the ambient temperature
After each stage of compression, there are intermediate water oil separator (except the first stage), and the final stage water oil separator
Each stage of compression is equipped with safety valve and final safety valve
A pressure maintaining valve is set in front of the outlet of the filling pump, which automatically opens at about 15MPa, so that the compressed air can ensure that the enhanced filtration filling pump has been filled with lubricating oil and has passed the operation test of the whole machine
The filling pump is equipped with a breathing air filter. A triple filtration system consisting of activated carbon, molecular sieve and carbon monoxide adsorbent is adopted to ensure that the filtered compressed air meets the standard of EN12021
Safety and control
Ultimate pressure 330 bar motor overload protection
Manual blowdown (once every 20 minutes)
Structure and style of filling pump
The filling pump is installed on a stable chassis. Transmission mode: gasoline engine transmission
Factory accessories
Number | Name | Qty | Number | Name | Qty |
01 | Multi Function High Pressure Inflation Valve And Inflation Hose | 1 | 05 | Sealing Ring | 3 |
02 | Intake Filter Element | 1 | 06 | O-ring | 4 |
03 | Last Stage Air Filter Element | 1 | 07 | Open Filter Barrel Tool | 1 |
04 | Food Grade Special Oil | 1L | 08 | Packing List | 1 |
Warranty period
Warranty period of one year, lifelong service
JM100SH Italian high pressure air filling pump is driven by Honda gasoline engine without power supply. It is small in size, light in weight and portable in charge. The compressed air meets the EU EN12021 breathing standard. It is mainly used in diving, fire fighting, color bullet shooting, aerospace, petrochemical, air tightness testing, blasting, precision instruments and other fields. It can also provide clean, safe and reliable gas source for other industries. It is composed of reliable and long service life components, with compact structure, simple maintenance, easy to use and pure outlet gas. The air filling pump, as a kind of machine for increasing gas pressure or conveying gas, can directly compress the free air to the compressed air with gauge pressure of 225bar / 330bar. After passing through the separator, filter and cooling in the unit, the oil and impurities contained in the high-pressure air are removed, and the clean and odorless gas pressure is discharged It is a reliable high-pressure gas supply device when it is retracted into a high-pressure gas cylinder or container.

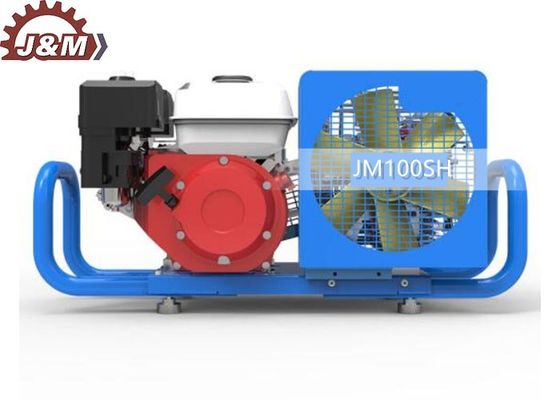

JM100SH Italian High Pressure Air Filling Pump Air Inflating Machine 30MPa Real picture
JM100SH Italian High Pressure Air Filling Pump Air Inflating Machine 30MPa Parameter
Name | JM100SH Italian High Pressure Air Filling Pump Air Inflating Machine 30MPa |
Model | JM100SH |
Drive | GX160 gasoline engine |
RPm r/min | 2800 |
Power KW | 5.5HP |
Displacement L/min | 100 |
Working medium | Air |
Working pressure Mpa | 20-30 |
Tank capacity L | 0.35 |
Compressor stages | Four stage compression |
Oil / water separation | Final stage oil water separator |
Lubricating oil model | BS750(food grade special oil) |
Noise dB | ≤85 |
Size mm | 680×370×400 |
Net weight Kg | 40 |
Final filter group | Purification and filtration of activated carbon, molecular sieve and alumina |
Air quality | It is in accordance with GB 18435-2007 "diving breathing gas standard" and European EN12021 "international breathing compressed air standard" |
Remark | Optional or customized |

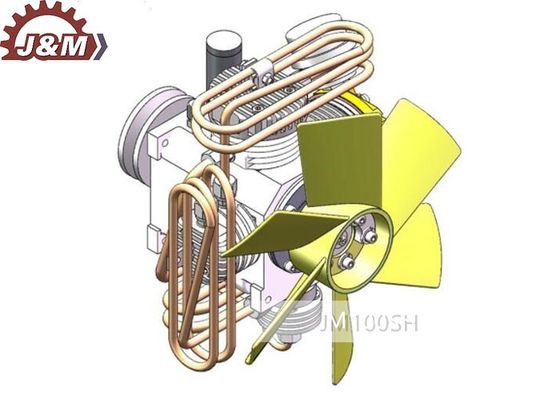

JM100SH Italian High Pressure Air Filling Pump Air Inflating Machine 30MPa Structure
