Product Name: | JMQ100 Air Tightness Test High Pressure Compressor | Model: | JMQ100 |
---|---|---|---|
Tank Capacity L: | 0.35 | Working Pressure Mpa: | 20-30 |
Compressor Stages: | Four Stage Compression | Drive: | 220V Single Phase Motor |
Lubricating Oil Model: | BS750(food Grade Special Oil) | Air Quality: | EN12021 |
Working Medium: | Air | Dimension: | 640×490×805 |
Oil / Water Separation: | Final Stage Oil Water Separator | Final Filter Group: | Purification And Filtration Of Activated Carbon, Molecular Sieve And Alumina |
Power KW: | 2.2KW | RPm R/min: | 2800r/min |
Net Weight Kg: | 53 | Displacement L / Min: | 10 |
Control System: | PLC Control (automatic Blowdown, Automatic Shutdown, Automatic Pressure Control) | ||
High Light: | 2.2KW Air Tightness Test Compressor J,IP55 Air Tightness Test Compressor J,2800r/Min High Pressure Compressor |
JMQ100 Air Tightness Test High Pressure Compressor
JMQ100 Air Tightness Test High Pressure Compressor Describe
JMQ100 German air tightness testing high-pressure compressor is an intelligent product, safe and reliable product.
The compressed air meets the EU EN12021 respiratory standard. It is mainly used in gas detection, pressure detection and other fields.
It can also provide clean, safe and reliable gas source for other industries.
It is composed of reliable and long service life components, with compact structure, simple maintenance, easy to use and pure outlet gas.
The air filling pump, as a kind of machine for increasing gas pressure or conveying gas, can directly compress the free air to the compressed air with gauge pressure of 225bar / 330bar.
After passing through the separator, filter and cooling in the unit, the oil and impurities contained in the high-pressure air are removed, and the clean and odorless gas pressure is discharged It is a reliable high-pressure gas supply device when it is retracted into a high-pressure gas cylinder or container.
JMQ100 Air Tightness Test High Pressure Compressor Parameter
Name | JMQ100 Air tightness test high pressure compressor |
Model | JMQ100 |
Tank capacity L | 0.35 |
Drive | 220V Single phase motor |
RPm r/min | 2800 |
IP Protection level | IP55 |
Power KW | 2.2 |
Displacement L/min | 10 |
Working medium | Air |
Working pressure Mpa | 20-30 |
Compressor stages | Four stage compression |
Oil / water separation | Final stage oil water separator |
Lubricating oil model | BS750(food grade special oil) |
Noise dB | ≤76 |
Size mm | 640×490×805 |
Net weight Kg | 53 |
Final filter group | Purification and filtration of activated carbon, molecular sieve and alumina |
Air quality | Comply with European EN 12021 "international compressed air standard" |
Control system | PLC control (automatic blowdown, automatic shutdown, automatic pressure control) |

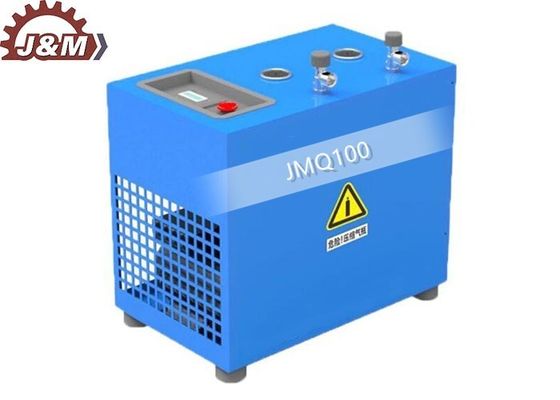

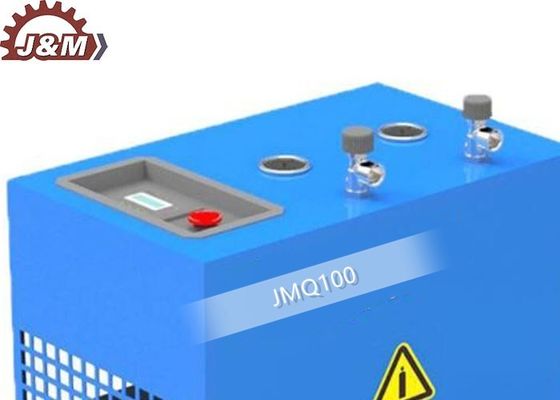

JMQ100 Air Tightness Test High Pressure Compressor Real picture
