Product Details:
Payment & Shipping Terms:
|
| Product Name: | JM450PL Air Compressor Pump | Model: | JM450PL |
|---|---|---|---|
| Displacement: | 450L/min | Working Pressure Mpa: | 20-30 |
| Compressor Stages: | Four Stage Compression | Tank Capacity L: | 2.8 |
| Lubricating Oil Model: | BS750（food Grade Special Oil） | Noise(dB): | ≤85 |
| Working Medium: | Air | Dimension: | 900×1100×1700 |
| Oil / Water Separation: | Final Stage Oil Water Separator | Final Filter Group: | Purification And Filtration Of Activated Carbon, Molecular Sieve And Alumina |
| Air Quality: | GB 18435-2007; EN12021 | Drive: | Three Phase Motor |
| Power: | 7.5 KW | RPm: | 1440r/min |
| Net Weight Kg: | 320 | Remarks: | Optional Or Customized |
| High Light: | 1440r/Min Air Compressor Pump,7.5KW Air Compressor Pump,450L/Min Air Compressor Filling Pump |
||
JM450PL air compressor pump
JM450PL Air Compressor Pump Characteristic
JM450PL air compressor pump
Main engine of filling pump
Splash lubrication
Lubricating oil: food grade special oil (American ruifubao bs750)
inlet filter
The filtered compressed air meets the standard of EN12021 breathing air

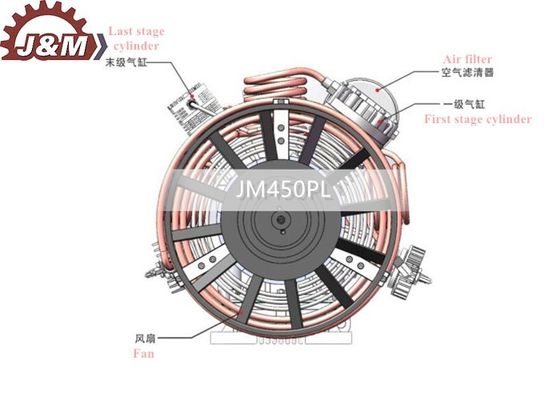

Structure and style of filling pump
The filling pump is installed on the stable underframe. The transmission mode is belt drive
The high pressure compressor has been filled with lubricating oil and has passed the operation test of the whole machine
High pressure compressor with breathing air filter, using activated carbon, molecular sieve, carbon monoxide adsorbent composed of triple filtration system, to ensure that through
There is a cooler after each stage of compression
The temperature of the compressed gas after passing through the cooler is about 10-15 ° C higher than the ambient temperature
After each stage of compression, there are intermediate water oil separator (except the first stage), and the final stage water oil separator
Each stage of compression is equipped with safety valve and final safety valve
A pressure maintaining valve is set in front of the outlet of the high-pressure compressor, which automatically opens at about 10MPa to ensure the enhanced filtration of the compressed air
JM450PL Air Compressor Pump Parameter
| Number | 008 |
| Model | JM450PL |
| Drive | Three phase motor |
| Power KW | 7.5 |
| RPm r/min | 1440 |
| IP Protection level | / |
| Net weight Kg | 320 |
| Displacement L/min | 450 |
| Working medium | Air |
| Working pressure Mpa | 20-30 |
| Compressor stages | Four stage compression |
| Tank capacity L | 2.8 |
| Lubricating oil model | BS750(food grade special oil) |
| Noise dB | ≤85 |
| Size mm | 900×1100×1700 |
| Oil / water separation | Final stage oil water separator |
| Final filter group | Purification and filtration of activated carbon, molecular sieve and alumina |
| Air quality | Accordance with the national GB18435-2007 standard for phreatic breathing gas and the international standard for breathing compressed air (EN12021) of Europe. |
| Remarks | Optional or customized PLC intelligent system |

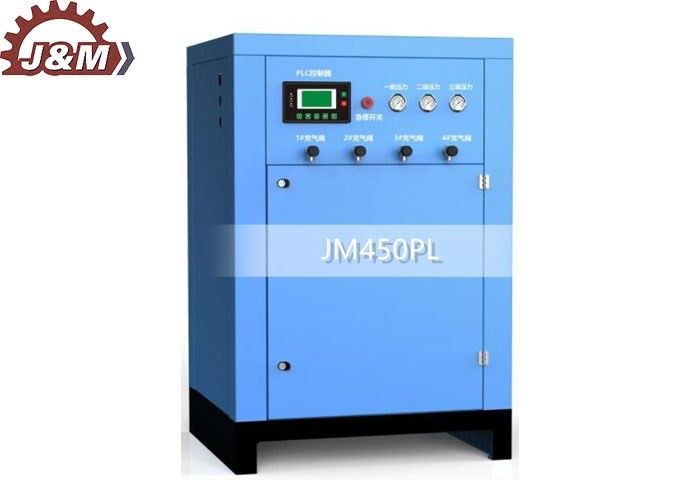

JM450PL Air Compressor Pump Real picture
