gas fire extinguishing device IG541 gas fire extinguishing system

IG541 Gas Fire Extinguisher Describe

IG541 mixed gas extinguishing agent used in IG-541 fire extinguishing system is a kind of extinguishing agent composed of nitrogen (N2), argon (AR) and carbon dioxide (CO2) in the atmosphere at the ratio of 52%, 40% and 8%.

IG541 mixed gas fire extinguishing system is a new type of gas fire extinguishing system developed in recent years. Its technology is relatively new and it is a "green" environmental protection type fire extinguishing system. The three components of IG541 mixed gas fire extinguishing system are the basic components of the atmosphere. After using, the components return to nature. It is a green fire extinguishing agent and an ideal substitute for halon fire extinguishing agent. It is colorless, odorless, non-conductive, corrosion-free, and has no decomposition in the process of fire-fighting. The concentration of NOAEL and LOAEL of IG541 are 43% and 52%, respectively. The design concentration of IG541 is generally between 37% and 43%. It is relatively safe to stay for a short time within this concentration.

IG541 Gas Fire Extinguisher Details

Produst Name: IG541 gas fire extinguishing system

Brand Name: J&M

Storage container volume: 70L/80L/90L/100L

Packing: Standard Package

Color: Red

20 °C storage pressure: 15 MPa

fire extinguishing agent storage bottles of specifications/filling quantity: 80l/16.8 Kg,

maximum working pressure (50 °C) : 17.2 MPa 1 start mode: magnetic start, mechanical

emergency start

electromagnetic drive air pressure: 6.0 + / - 1.0 MPa (20 °C)

electromagnetic drive starting power: DC24V / 1.5 A 1.2.7

agent application time: 60s or less

protection zone temperature: 0 °C to 50°C

store between bottle temperature: 0°C to 50°C

The Application of IG541 Gas Fire Extinguisher

Factory Plant

Cable Tunnel

Cable Room

Library

Telecommunication Base Station

Tobacco Warehouse

Transformer Substation

Cable Shaft

Archives Center

Museum

Large Warehouse

Tunnel Chamber of High-speed Railway

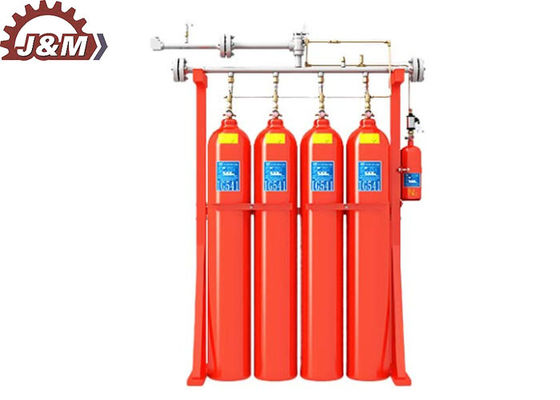

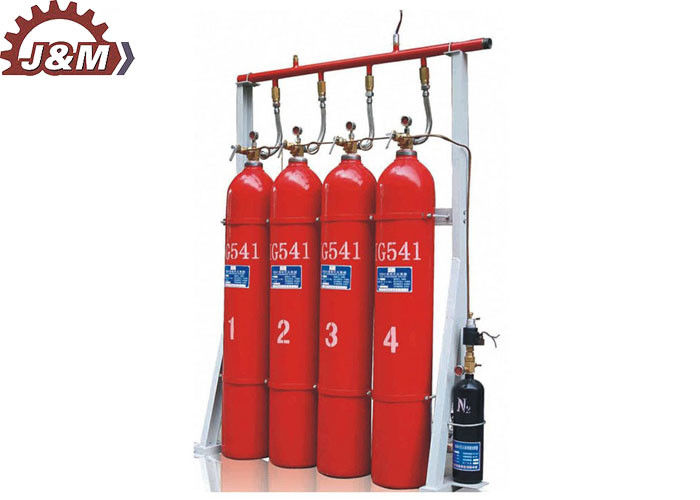

IG541 Gas Fire Extinguisher Pictures

IG541 Gas Fire Extinguisher system parts

All parts made of IG541 system:stored bottle,driving gas bottle,bottle rack, connecting pipe,safety relief device, Low leakage and high sealing valve,one way valve,manifold pipe,gas check pipe,pressure switch,nozzle, colleting of sewage,flange,square bent, pressure reducing device

Packaging & Delivery

Delivery way:

By sea, by air or by express

Lead Time :

Quantity(Tons)	1 - 100	101 - 500	>500
Est. Time(days)	15-20	20-25	To be negotiated

Port

China Port
