| Frequency: | 2.2Kw | Filling Time: | 6.8L 300bar/21min 12L 200bar/25min |
|---|---|---|---|
| Displacement: | 100L/min – 6m³/h – 3,5 CFM | Stage: | Four Stage Compressed |
| IP Grade: | IP55 | Noise: | ＜ 78 DB(A) |
| N.W: | 44KG | ||
| High Light: | manual hand pump,fire fighting equipment |
||

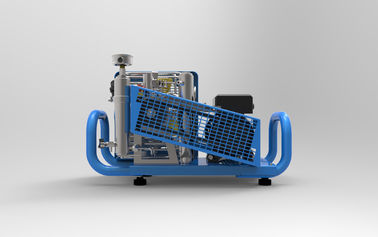

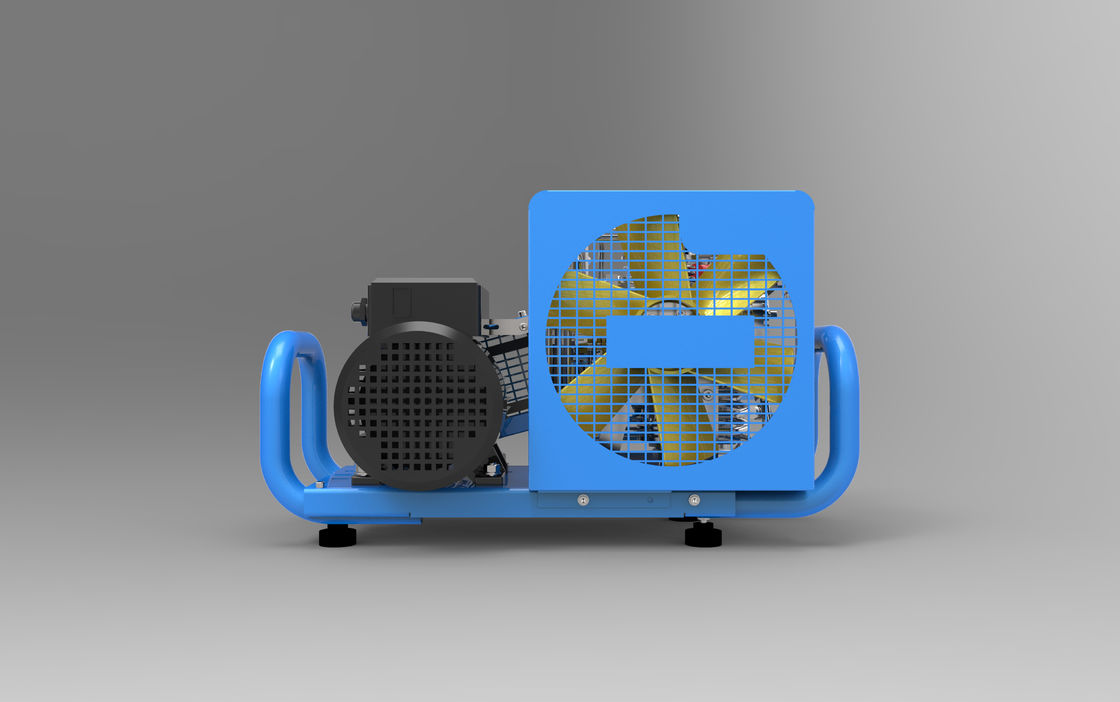

HPC100 High Pressure Compressor For Air and Breathing Air Compression
| 技术参数(technical) | HPC100 | ||
| Model number | HPC100/EM | HPC100 /ET | HPC100 /SH |
| Type |
cooling air , lubricating oil , standard compressor) |
(cooling , Lubricating Oil, Standard compressor ) |
(cooling , lubricating oil , standard compressor ) |
| Driver |
single phase electric motor 220v |
three phase electric motor 380v |
5.5 PS HONDA gasoline engine |
| frequency | 2.2 Kw | 2.2 Kw | 5.5 HP |
|
full load current |
14A (230V-50/60Hz) | 5A (380V-50/60Hz) | / |
| filling time |
6.8L 300bar/21min 12L 200bar/25min |
6.8L 300bar/20.4min 12L 200bar/24min |
6.8L 300bar/20.4min 12L 200bar/24min |
| displacement | 100L/min – 6m³/h – 3,5 CFM | ||
|
working pressure |
225 Bar / 3300 Psi 300 Bar / 4300 Psi |
||
| stage | four stage compressed | ||
| medium | air ,Notrogen ,natural gas ,others | ||
| intake temperature range | 5～45℃ | ||
|
operation temperature range |
60～90℃ | ||
|
cooling air requirement |
1200m³/h | ||
|
motor speed |
2840r/min | / | |
|
IP Grade |
IP55 | IP55 | / |
|
lubricating filling amount |
300 cc (0.3 L) / 10 FL. OZ. | ||
| lubricating oil | special oil for air compressor /BS750 us Rui fu dedicated food grade oil | ||
| master speed | 2300r/min | 2800r/min | 2800r/min |
| noise | ＜ 78 dB(A) | ||
| N.W | 44 Kg | ||
| Size | 58×40×41 cm | 76×34×47 cm | |
| oil water separator | the last stage of oil-water separator | ||
| filter | activated carbon and molecular sieve filter | ||
|
breathing air standard |
EN12021 | ||
