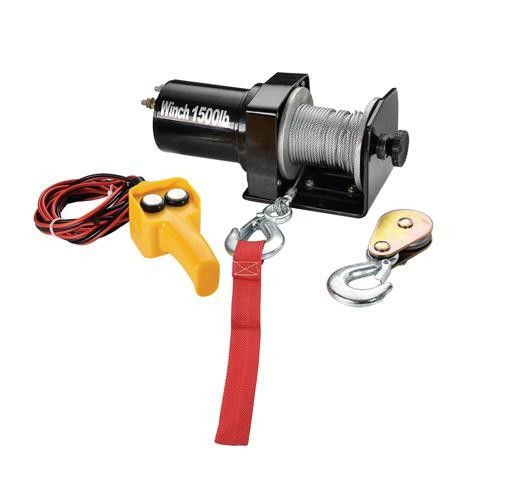

Electric Winches Permanent Magnet Motor

Large Image : Electric Winches Permanent Magnet Motor

Product Details:

Place of Origin:	China
Brand Name:	J&M
Model Number:	P750-1

Payment & Shipping Terms:

Minimum Order Quantity:	100 SETS
Delivery Time:	30 DYAS
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Rated Line Pull::

Single- Line Pull : 750lbs(337kg) Double-line Pull: 1500lbs (680kg)

Overall Dimension::

285mm X 105mm X 105mm

Cable:

Φ3mm X 15m

Drum Dimensions:

Φ30mm X 72mm

High Light:

hydraulic garage jack

hydraulic trolley jack

Electric Winches 750 LB P750-1 Φ3mm X 15m Cable Permanent Magnet Motor

Specifications:

Rated line pull	Single- line pull : 750lbs(337kg) Double-line pull: 1500lbs (680kg)
Motor	0.3kw/0.4hp 12V, permanent magnet
Gear reduction ratio	153:1
Drum Dimensions	Φ30mm x 72mm
Cable	Φ3mm x 15m
Mounting dimension	Φ8.5mm x 80mm
Battery cable	1.83m
Overall Dimensions	285mm x 105mm x 105mm
Packing size	33.5X16X37 cm
Weight	N.W/G.W:10kgs/11kgs
Export Markets	Europe,North America etc
Standard Met	CE

Electric Winches Permanent Magnet Motor 0
