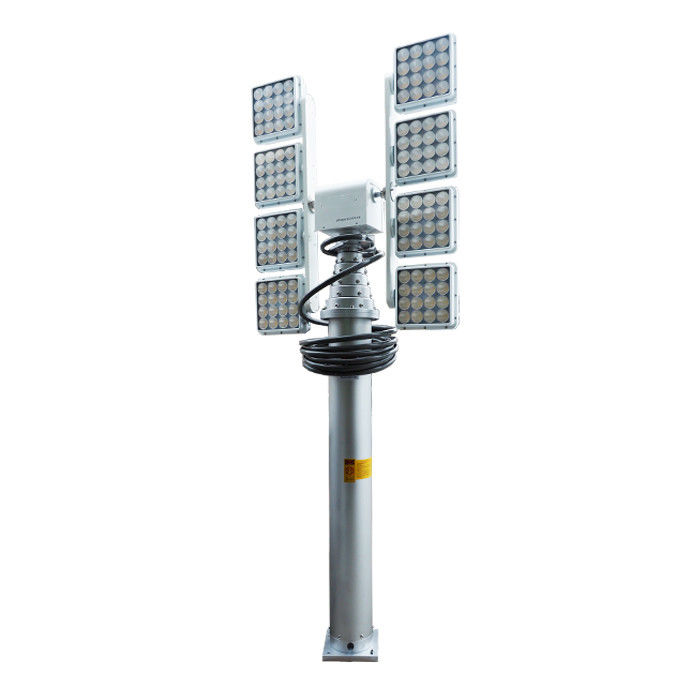

8pcs 600W LED Lighthead Firefighter Portable Lighting Equipment Site Scan

I'm Online Chat Now

8pcs 600W LED Lighthead Firefighter Portable Lighting Equipment Site Scan

8pcs 600W LED Lighthead Firefighter Portable Lighting Equipment Site Scan
8pcs 600W LED Lighthead Firefighter Portable Lighting Equipment Site Scan 8pcs 600W LED Lighthead Firefighter Portable Lighting Equipment Site Scan 8pcs 600W LED Lighthead Firefighter Portable Lighting Equipment Site Scan

Large Image :  8pcs 600W LED Lighthead Firefighter Portable Lighting Equipment Site Scan

Product Details:

Place of Origin: CHINA
Brand Name: J&M

Payment & Shipping Terms:

Minimum Order Quantity: 10 PCS
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Detailed Product Description
Bulb Type: LED LED Type: Flood
Material: Cold Rolled Steel Sheet Working Voltage: DC12V
Specifications: 8*600W Luminous Flux: 500000 Lm
High Light:

rotating light bar

,

emergency led light bar



8pcs 600W LED Lighthead Firefighter Portable Lighting Equipment Site Scan



Quick Details
Place of Origin:
China
Brand Name:
J&M
Bulb Type:
LED
Warranty(Year):
1 year
Material:
Cold Rolled Steel Sheet
Battery Type:
Ni-CD
Usage:
lighting
Specifications:
8*600W
Working Voltage:
DC12V
Power:
8*600W
Working current:
≤22A
Horizontal rotation Angle:
380°
Vertical rotation Angle:
180°
Luminous flux:
500000 lm
Raise height:
7.5m
Remote control distance:
≥150 meters
LED type:
flood
light working voltage:
AC220V





Product Features
  • SG75-8600X fire mobile lighting device has the characteristics of wired controller and wireless remote control, automatic reset, easy operation and use, large power, high brightness, wide exposure range and long range, which can be quickly enabled to provide high brightness lighting.This product can provide emergency lighting for various applications such as fire lighting, engineering emergency, disaster response, police field, etc.
  • SG75-8600X fire mobile lighting device lifting mast is fixed in the hole on the roof. The lifting mast provides the installation plate on the bottom of the car and the fixed splint on the top of the car. The installation plate on the bottom of the car is generally fixed on the beam on the bottom of the car.The roof is fixed in the plywood with two plates provided by SG lifting mast to ensure sufficient supporting strength after the lifting of SG lifting mast. The lamp and the cradle head are lifted to a height of 7.5m to realize the high-altitude and large-area strong light lighting of the lamp tower.
  • The 4800W lighting lamp head adopts LED light source.







Technical parameter

System operating voltage DC12V
Lamp working voltage AC220V
Lamp power 600W*8
Lamp working current ≤22A
Rotating operating current ≤2A (Max)
Horizontal rotation Angle 380°
Vertical rotation Angle 180°
Horizontal and vertical rotation speed 4r/min
Luminous flux 500000lm
Operating environment temperature -30° ~ 55°
Switch mode of lamps and lanterns two sets of lamps and lanterns are respectively controlled
Lamp lamplight form flood light
Light source type LED
Control mode distribution box panel, wired controller, wireless remote control
Remote control distance ≥ 150m, powered by 3 no. 7 dry batteries
Protocol control mode RS485 control interface (built-in)
Agreement address 05
Baud rate 9600
Lifting power pneumatic
Spring line outside
Lifting height of lifting rod 7.5m
Closing height of lifting rod 1.76M
