Product Details:
Payment & Shipping Terms:
|
| Transmission Type: | Manual | Horsepower: | 150 - 250hp |
|---|---|---|---|
| Max. Work Height: | 18m | Tank Capacity: | 3001 - 5000L |
| High Light: | emergency rescue vehicle,double bit axe |
||

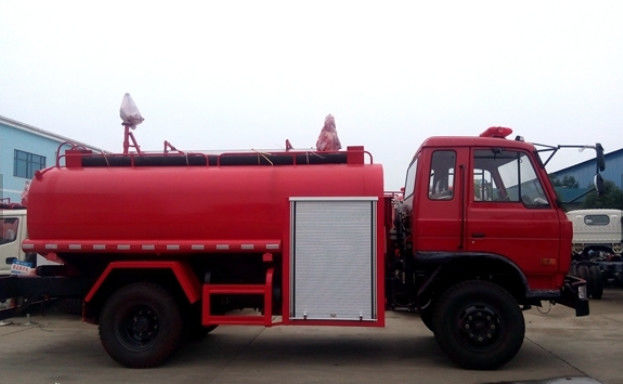

Dongfeng Fire Truck Parts Stainless steel water tank 5000 Liters
| Dongfeng 6 ton water fire fighting truck main parameter | ||||||
| Name | 6 ton water fire fighting truck | Overall dimension | 7885×2490×3400(mm) | |||
| Chassis model | EQ1141KJ | Water tank dimension | 2795×1395×1300mm | |||
| Gross weight | 13850(Kg) | Approach/ departure angle | 25/14(°) | |||
| Rated weight | 5000(Kg) | F/R overhang | 1205/2180(mm) | |||
| Curb weight | 8400(Kg) | Max speed | 90(km/h) | |||
| Engine | ISDe210 30 | |||||
| Displacement | 6700(ml) | Power | 155(kw) | |||
| Manufacturer | Dongfeng | |||||
| Emission standard | Euro 4 | |||||
| Axle no | 2 | Front track | 1940/1860(mm) | |||
| Wheelbase | 4500 | Rear track | 1860(mm) | |||
| Tyre no | 6 | Tyre specification | 10.00-20,10.00R20 | |||
| Fuel | diesel | Spring leaf no | 8/10+8 | |||
| Axle load | 4350/9500 | Cabin seat | 3+3 | |||
| Tank volume | 5000Liters | |||||
|
Feature |
1, Composed by tank, pump room, equipment boxes, power output and transmission system, piping system, electrical system, etc. 2, fire engines use double row cabin seat, broadminded, more crew, can allow six to eight people. Fire truck can be fire in March, far range, strong fire fighting capacity. 3, options in the atmospheric pressure fire pump, low pressure fire pump, high and low pressure fire pump. 4, car inside and outside is made of high quality steel, high strength aluminum alloy profiles, skin are made of corrugated aluminum plate overall design multi-channel washboard vats. 5, equipment compartments within the outer frame is made of high quality carbon steel plate, high strength aluminum alloy profile is used for skeleton, using capacitor lap structure design. Interior trim panels made of pattern aluminum plate surface anodic oxidation treatment, strong and durable. In terms of structure, equipment load layout reasonable, equipment use more convenient, special fixture fixture equipment store more solid. 6 compartments book door is made of high quality aluminum alloy design and production, equipment, opening and closing flexible, low noise, good sealing, good appearance. 7, pump room set up water pump system, various kinds of instrument, indicator light, gauge, pressure gauge, vacuum gauge, etc.
|
|||||
