Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fire Extinguisher Gauges | Brand Name: | J&M |
|---|---|---|---|
| Window: | Plastic Or Glass | Capacity: | 1-10kg Extinguisher Valve |
| Connect: | Bottom | Support: | OEM |
| Packing: | Standard Package | Pressure Range: | -30"Hg-0-15000psi |
| Socket And Tube: | Brass Or Ss316 | Dial: | 1.5",2",2.5",3",4",6" |
| High Light: | 15000 psi Fire Extinguisher Gauges,ss316 Fire Extinguisher Gauges,63mm Fire Extinguisher Gauges |
||
63mm 15000 Psi Fire Extinguisher Gauges Firefighter Rescue Tools
The details of Fire extinguisher gauges
Product name: Fire extinguisher gauges
Window: Plastic or Glass
Case: Black steel
Connect: Bottom
Socket and tube: Brass or 316 ss
Pressure range: -30"Hg-0-15000psi
Accuracy: 1.6% or 1.0%
Dial: 1.5",2",2.5",3",4",6"
Packing: standard packed
Brand Name: J&M
Description: Fire extinguisher Parts
Place of Origin: China
Standard: ISO Standard
Support: OEM
Payment Terms: T/T L/C
The Parameter of Fire extinguisher gauges
| Product Name: | Fire extinguisher gauges |
| Normal Size: |
1.5"(40mm),2.0"(50mm),2.5"(63mm), 3"(75mm),4"(100mm),6"(150mm). |
| Pressure Range: | -1Bar(-30"Hg)-0-1000Bar(15000Psi) |
| Accuracy: | ±1%,±1.6% |
| Operating temperature: | -20°C to +60°C |
| Case: | Painted steel |
| Bezel: | Painted steel |
| Bourdon tube: |
Copper alloy or Stainless steel <100Bar: C-Type ≥100Bar: Helical Type |
| Connection: | Brass |
| Movement: | Brass |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Polycarbonate or Glass |
| Thread: |
1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc. |

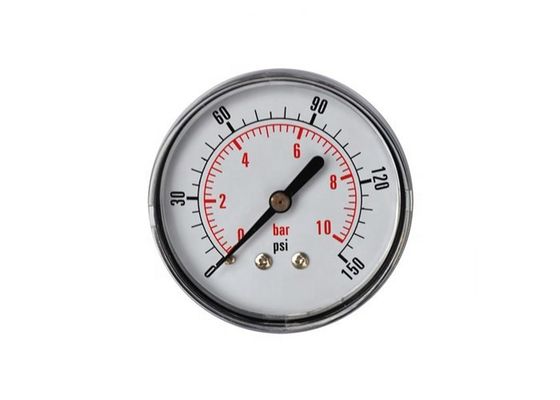

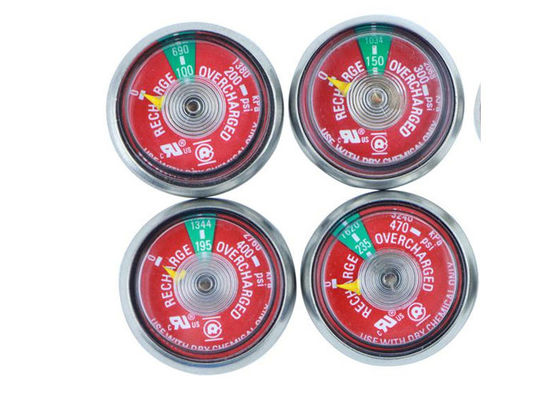

Picturres of Fire extinguisher gauges
Application of Fire extinguisher gauges
Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers.
Company Information
J & M Machine Tools Co. Ltd is specialized in supplying Chinese high quality industrial metal-working machines, which includes Grinding machines, ,RV parts,Turning, police car parts, Drilling, Fire truck parts, Milling, ambulance parts, metal-forming machines etc.. (both conventional and CNC type). Our Machines are with high quality in China with European standard which had been exported to worldwide markets for its reliable quality and favorable price.
If the pointer in the pressure gauge of the fire extinguisher points to the green area, it means that the fire extinguisher is not damaged and can still be used.
If the pointer in the pressure gauge of the fire extinguisher points to the yellow area, the pressure of the fire extinguisher will be relatively high.
If the pointer in the pressure gauge of the fire extinguisher points to the red area, it indicates that the pressure of the fire extinguisher is not enough.
If the pressure gauge of the fire extinguisher is broken, the pointer will also point to the red area, and then the fire extinguisher needs to be replaced.
FAQ about Fire extinguisher gauges
Q: How can we order it?
A: Please contact us for more details.
Q: What's the MOQ?
A: We don't have MOQ, if you want to take 1pc for sample order, it's accepted.
Q: How long is your delivery time?
A: It depends on the mode of transportation. We can calculate the most suitable freight and the delivery time to you,
Q: Can you use our brand?
A: Yes, OEM is available.
Q: What's the use of Fire extinguisher ?
A: 1. When taking the fire extinguisher, it should be noted that the fire extinguisher can not be turned upside down, and it is necessary to use the lower part of the pull mouth of the portable fire extinguisher, so that we have the spot where we can exert our strength.
2. Put the fire extinguisher flat on the ground, and then pull out the safety pin with the fastest speed. It's a ring on the side of the handle.
