Home ProductsTruck Garage Equipment

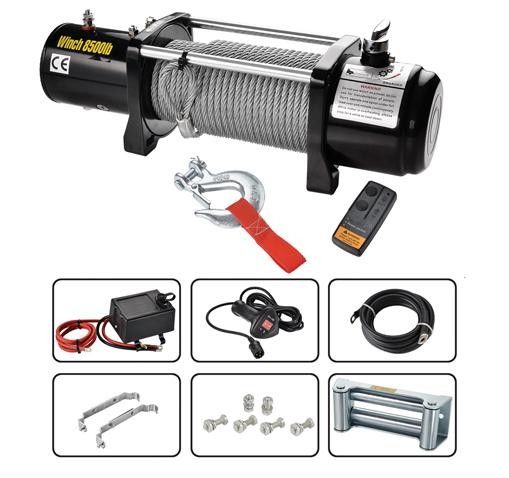

8500lb Sc8500 Truck Garage Equipment Remote Switch Control Two Way

I'm Online Chat Now

8500lb Sc8500 Truck Garage Equipment Remote Switch Control Two Way

8500lb Sc8500 Truck Garage Equipment Remote Switch Control Two Way
8500lb Sc8500 Truck Garage Equipment Remote Switch Control Two Way

Large Image :  8500lb Sc8500 Truck Garage Equipment Remote Switch Control Two Way

Product Details:

Place of Origin: China
Brand Name: J&M
Model Number: SC8500

Payment & Shipping Terms:

Minimum Order Quantity: 100 SETS
Delivery Time: 30 DYAS
Payment Terms: L/C, T/T
Detailed Product Description
Rated Line Pull:: 8500LBS(3856kgs) Single Line Control: Remote Switch,12ft(3.7m)lead
Braking Action: Two-Way, Automatic In-The-Drum Fairlead: 4-Way Roller Fairlead
Cable(Dia X L): Φ5/16" X94' (Φ8.1mmx28m) Drum Dimensions: Φ2.5"x8.8"(Φ63.5mmx224mm)
High Light:

welded bottle jacks

,

hydraulic trolley jack



8500lb Sc8500 Truck Garage Equipment Remote Switch Control Two Way





Specifications:



Rated line pull 8500LBS(3856kgs) single line
Motor 4.0KW/5.5HP 12V, 4.8KW/6.44HP 24V,Series Wound
Control Remote switch,12ft(3.7m)lead
Gear train 3 Stage Planetary Gear reduction ratio 195.8:1
Clutch Sliding Ring Gear
Braking Action Two-way, Automatic In-The-Drum
Drum Dimensions Φ2.5"x8.8"(Φ63.5mmx224mm)
Cable(Dia X L) Φ5/16" x94' (Φ8.1mmx28m)
Fairlead 4-Way Roller Fairlead
Wireless Remote Control Optional
Battery Recommended 650CCA minimum for winching
Battery Leads 2 gauge,72"(183mm) Finish Black powder coat
Overall Dimensions 21.1"x6.3"x8.6"(537mmx160mmx218mm)
Mounting Bolt Pattern 254mmx114.3mm
Packing size 57x19x34.5cm 1PC/CTN
Weight N.W. 35kgs G.W. 37Kgs
Export Markets Europe,North America etc
Standard Met CE



8500lb Sc8500 Truck Garage Equipment Remote Switch Control Two Way 0
