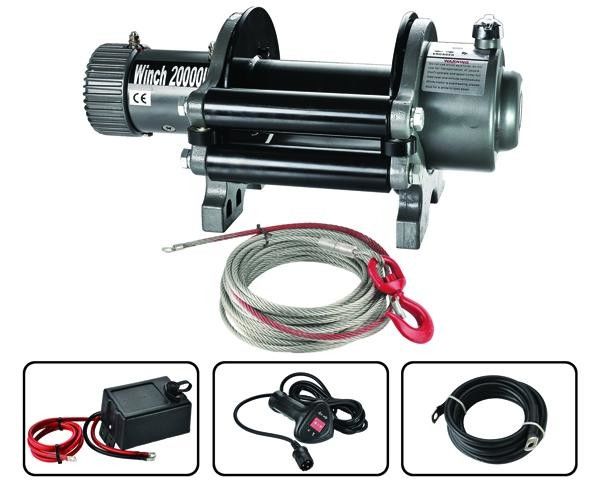

Remote Switch Electric Truck Winch 20000lbs CE approved S20000T

I'm Online Chat Now

Remote Switch Electric Truck Winch 20000lbs CE approved S20000T

Remote Switch Electric Truck Winch 20000lbs CE approved S20000T
Remote Switch Electric Truck Winch 20000lbs CE approved S20000T

Large Image :  Remote Switch Electric Truck Winch 20000lbs CE approved S20000T

Product Details:

Place of Origin: China
Brand Name: J&M
Model Number: S20000T
Detailed Product Description
Rated Line Pull:: 20000LBS(9072kgs) Single Line Control: Remote Switch,12ft(3.7m)lead
Braking Action: Two-Way, Automatic In-The-Drum Fairlead: 4-Way Roller Fairlead/Hawse Fairlead
Cable(Dia X L): Φ13.5mmx30m Drum Dimensions: Φ99mmx201.5mm
High Light:

welded bottle jacks

,

hydraulic trolley jack



Remote Switch Electric Truck Winch 20000lbs CE approved S20000T





Specifications:



Rated line pull 20000LBS(9072kgs) single line
Motor 5.5KW/7.3HP 12V, 6.0KW/8.16HP 24V, Series Wound
Control Remote switch,12ft(3.7m)lead
Gear train 3 Stage Planetary
Gear reduction ratio 375:1
Clutch Sliding Ring Gear
Braking Action Two-Way, Automatic In-The-Drum
Drum Dimensions Φ99mmx201.5mm
Cable(Dia X L) Φ13.5mmx30m
Fairlead 4-Way Roller Fairlead/Hawse Fairlead
Wireless Remote Control Optional
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(183mm)
MAX Current(No Load) ≧75V(12V) ≧65A(24A)
MAX Current(Load) ≧465A(12V) ≧410A(24V)
Overall Dimensions 565x310x280mm
Winch packing size 60x38x40cm 53kgs(with out cable)
Cable packing size 46x46x15cm 24kgs
Mounting hole 254mmx114.3mm, 254x194.3mm
M10x30 Outside Hexagon 8.8 grade 8 pieces
Export Markets︰ Europe ,Noth America, Austrilia,Asian region
Min Order︰ NEGOTIABLE
Standard Met︰ CE
