| Rated Line Pull:: | 12000LBS(5443kgs) | Control: | Remote Switch,12ft(3.7m)lead |
|---|---|---|---|
| Braking Action: | Two-Way, Automatic In-The-Drum | Fairlead: | 4-Way Roller Fairlead/Hawse Fairlead |
| Cable(Dia X L): | Φ23/64" X90' (Φ9.1mmx27.5m) | Rope(Dia X L): | Φ10mmx26m |
| High Light: | welded bottle jacks,hydraulic trolley jack |
||

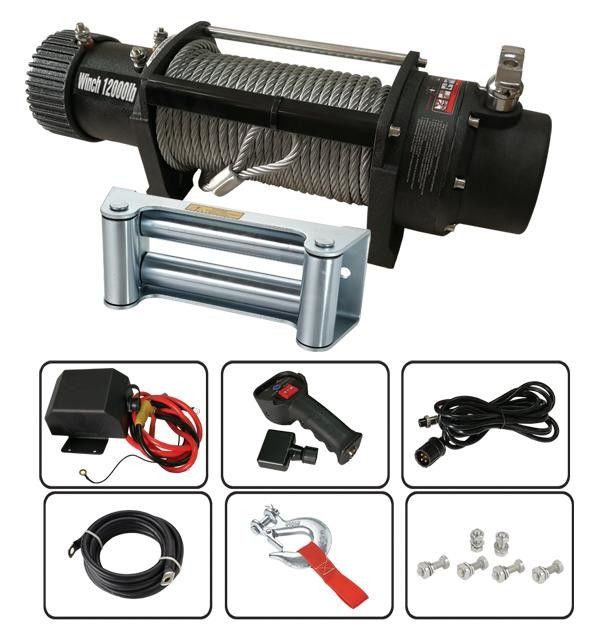

Heavy Duty Electric Winch 12000lbs SC12000X Hawse Fairlead Φ10mmx26m Rope
| Specifications︰ | |
| Rated line pull | 12000LBS(5443kgs) |
| Single line Motor | 5.2KW/7.2HP 12V, Series Wound |
| Control | Remote switch,12ft(3.7m)lead |
| Gear train | 3 Stage Planetary Gear reduction ratio: 187.2:1 |
| Clutch | KeyWAY Cam |
| Braking Action | Two-Way, Automatic In-The-Drum |
| Drum Dimensions | Φ64mmx224mm |
| Cable(Dia X L) | Φ23/64" x90' (Φ9.1mmx27.5m) |
| Rope(Dia X L) | Φ10mmx26m |
| Fairlead | 4-Way Roller Fairlead/Hawse Fairlead |
| Wireless Remote Control | Optional |
| Battery | Recommended: 650CCA minimum for winching |
| Battery Leads | 2 gauge,72"(183mm) Finish: Dark gray powder coat |
| Overall Dimensions | 536.5mmx155mmx205mm |
| Mounting Bolt Pattern | 254mmx114.3mm |
| Packing size | 57x19x34.5cm 1PC/CTN |
| Weight(cable winch) | N.W/G.W : 37kgs/39Kgs |
| Weight(rope winch) | N.W/G.W: 27kgs/29Kgs |
| Advantages︰ | 1. 12000lb truck winch |
| 2. waterproofed motor and gearbox | |
| 3. wired and wireless remote control | |
| Export Markets︰ | Europe ,Noth America, Austrilia,Asian region |
| Payment Details︰ | T/T |
| Min Order︰ | NEGOTIABLE |
| Standard Met︰ | CE |
